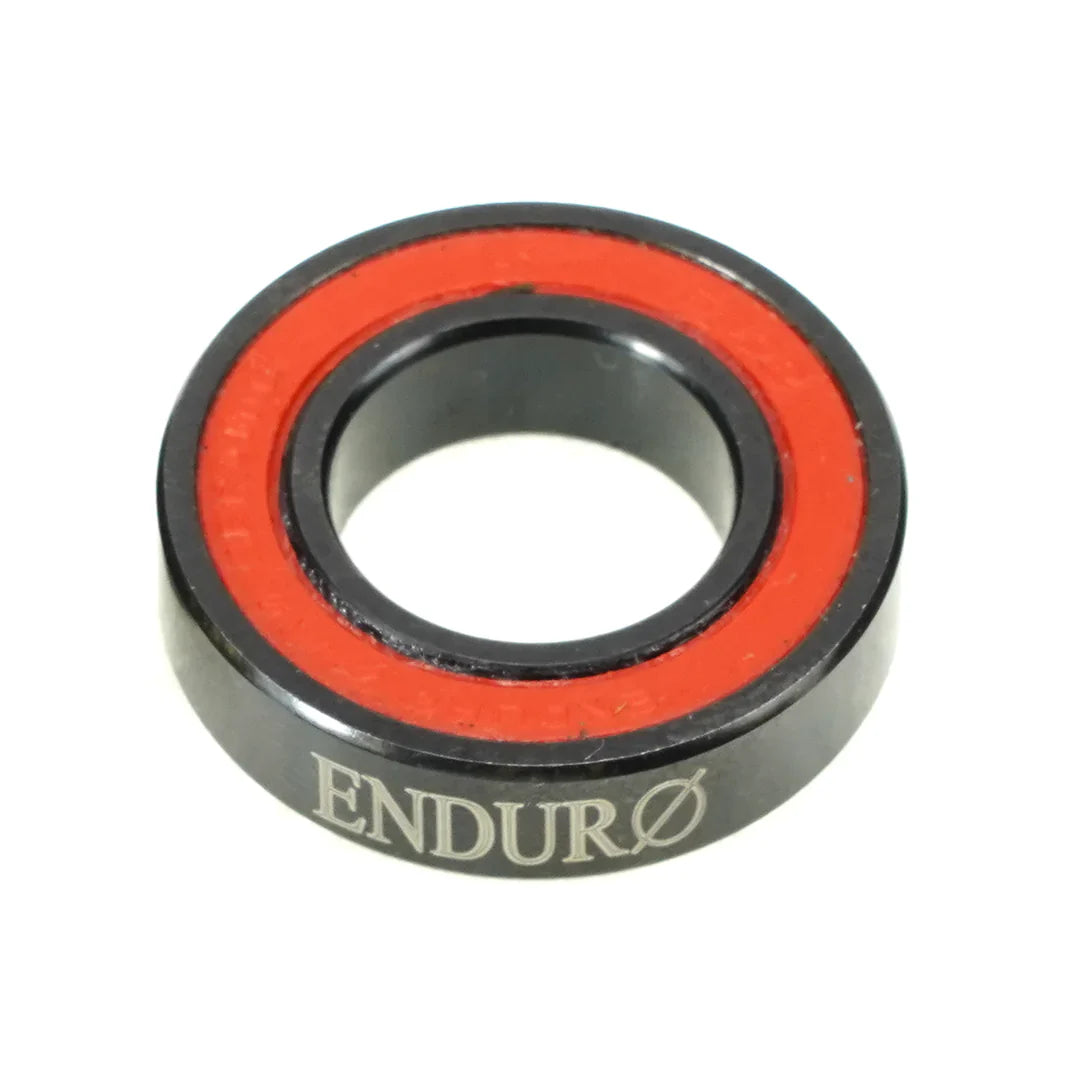

CO 6801V - Enduro Zero, Black-Oxide, Ceramic-Hybrid, ABEC-5, radial bearing (C3 clearance) - 12mm x 21mm x 5mm
Enduro Zero, Ceramic-Hybrid, ABEC-5, radial bearing featuring black-oxide treated 52100 High-Carbon chromium alloy races paired with grade 5 Silicon-Nitride Ceramic balls with 90% fill, high-pressure, water-proof grease. Si3N4 ceramic balls reduce bearing wear and increase bearing life by eliminating steel on steel contact within the bearing. Black oxide/magnetite treatment to the races provides an extra level of corrosion resistance and extended worry-free performance. VV seals are our lightest contact design, allowing for the fastest spinning bearing we make, though not as protective against the elements as our LLB or LLU type seals.
Radial bearing generally used as a hub bearing for some quick-release hub designs, pedals and can be used as a pivot bearing though the MAX-type version of this bearing is better suited for suspension use.
The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.

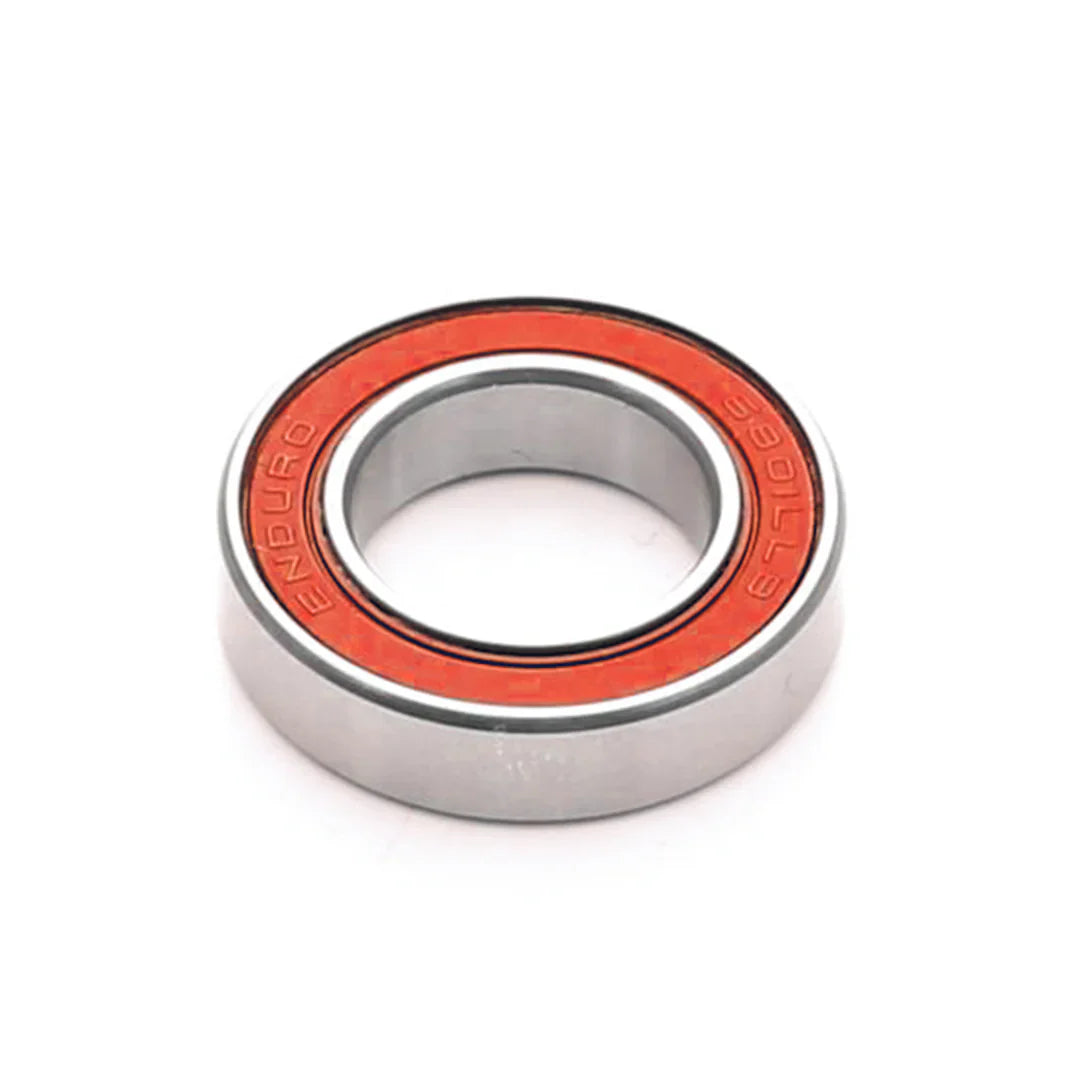

CH 6801 LLB - ABEC-5adial Bearing (C3 clearance) - 12mm x 21mm x 5mm
This ABEC-5, Ceramic-hybrid bearing features deep-groove design 52100 High-Carbon chromium alloy races, with grade 5 Silicon-Nitride Ceramic balls, dual-lip labyrinth (LLB) seals to withstand the outside elements, and to contain the 90% fill Mobilux NGLI 2 high pressure water proof synthetic grease. Si3N4 ceramic balls reduce bearing wear and increase bearing life by eliminating steel on steel contact within the bearing.
A radial bearing generally used as a hub bearing for some quick-release hub designs, pedals and can be used as a pivot bearing though the MAX-type version of this bearing is better suited for suspension use.
The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD-15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls possible and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.
Static load - 233lbf / 1.03kN
Weight - 5.31g
